Datasheet: PL611-25XXXWC (PhaseLink Corporation)

Programmable Quick Turn Clock



Download: PDF   ZIP
PhaseLink Corporation
PL611-25
Programmable Quick Turn Clock
T M
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
Rev 10/05/05 Page 1
FEATURES
Advanced programmable PLL design
Very low Jitter and Phase Noise (< 40ps Pk-Pk typical)
Two registers banks for 2-time programming.
Output frequency up to 200MHz CMOS.
Crystal inputs:
o Fundamental crystal: 10MHz-30MHz
o 3
RD
overtone crystal: Up to 75MHz
Single 2.5V or 3.3V 10% power supply
Operating temperature range from -40C to 85C
Available in Die form only

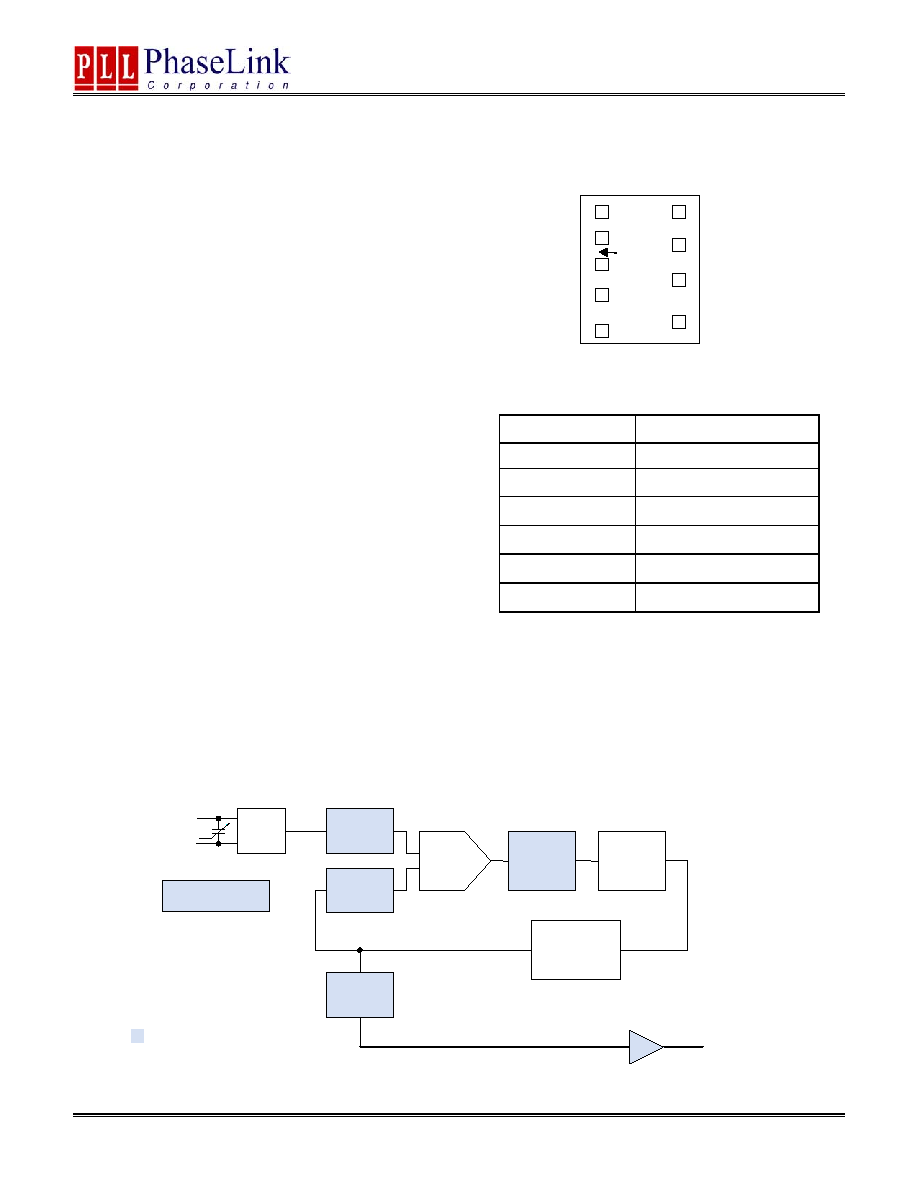

PAD LAYOUT AND DIE ID

DIE AND WAFER SPECIFICATION
Name Value
Die Size
31.5x55.1 mil
Reverse side
GND
Pad Opening
80 micron x 80 micron
Wafer Diameter
8"
Die Per Wafer
22,277
Wafer Thickness
12 mil

DESCRIPTION
The PL611-25 is a low-cost general purpose
frequency synthesizer and a member of PhaseLink's
Factory Programmable `Quick Turn Clock (QTC)'
family. PhaseLink's PL611-25 product family can
generate any output frequency up to 200 MHz from
fundamental crystal input between 10 MHz - 30 MHz,
or a 3rd overtone crystal of up to 75Mhz.
BLOCK DIAGRAM
Phase
Detector
Charge
Pump
Loop
Filter
VCO
Xtal
OSC
XIN/ FIN
XOUT
P-
counter
(
5-
bit)
M
-
counter
(
10-
bit)
R
-
counter
(
8-
bit)
CLK1
F
VCO
= F
Ref.
* (2 * M /R)
F
Out
= F
VCO
/ (2 * P)
Programmable
CLoad
Programmable Function
XIN
GND
GND
1
2
3
4
5
9
6
7
8
XOUT
DNC
VDD
VDD
1
2
3
4
5
9
6
7
8
OE
CLK1
Die ID:
C611A-
0505-05D
PL611-25
Programmable Quick Turn Clock
T M
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
Rev 10/05/05 Page 2
KEY PROGRAMMING PARAMETERS
CLK[ 0:2 ]
Output Frequency
Output Drive
Strength
Crystal Load
# of Register
Banks
Charge-Pump Current
Fout = FIN * M / (R * P) where
M=10 bit
R= 8 bit
P= 5 bit
CLK1= VCO / 2 * P
Std: 10mA
(default)

High: 24mA
+/- 200ppm
tuning.
2
4 levels of pump
current setting
PAD ASSIGNMENT and DESCRIPTION
Die Pads
Name
Pad #
X (m)
Y(m)
Type Description
XIN 1
101.5
1274.0
I
Crystal
input.
OE 2
101.5
1075.0 I
Output
Enable
GND 3
101.5
878.4 P
GND
connection.
GND 4
101.5
671.8 P
GND
connection.
CLK1 5
101.5
425.0 O
Programmable
Clock
Output.
6
697
483.0
VDD
7 697
790.0
P VDD
connection.
DNC
8
697
1024.0
-
Do Not Connect
XOUT 9
697
1274.0 O
Crystal
output.
PL611-25
Programmable Quick Turn Clock
T M
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
Rev 10/05/05 Page 3
ELECTRICAL SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
PARAMETERS SYMBOL
MIN.
MAX.
UNITS
Supply Voltage Range
V
DD
-
0.5
4.6 V
Input Voltage Range
V
I
-
0.5 V
DD
+
0.5
V
Output Voltage Range
V
O
-
0.5 V
DD
+
0.5
V
Data Retention @ 85 C
10
Years
Soldering Temperature (Green Package)
260
C
Storage Temperature
T
S
-65 150
C
Ambient Operating Temperature*
-40
+85
C
Note: Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the
device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions
above the operational limits noted in this specification is not implied.

* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
AC SPECIFICATIONS
PARAMETERS CONDITIONS
MIN.
TYP.
MAX.
UNITS
Fundamental Crystal
10
30
MHz
Crystal Input Frequency
3
rd
Overtone Crystal
75
MHz
Settling Time
At power-up (after VDD increases over
1.62V)
10
ms
VDD Sensitivity
Frequency vs. VDD+/-10%
-2
2
ppm
15pF Load, 10/90%VDD, Standard drive
2.5
3.5
ns
Output Rise Time
15pF Load, 10/90%VDD, High drive
1.0
1.5
ns
15pF Load, 90/10%VDD, Standard drive
2.5
3.5
ns
Output Fall Time
15pF Load, 90/10%VDD, High drive
1.0
1.5
ns
Duty Cycle
At VDD/2
45
50
55
%
Max. output skew between
same frequency clocks
Equal loading (15 pF). Equal frequency
& drive strength
500
ps
Period Jitter, peak-to-peak*
(measured from 10,000
samples)
With capacitive decoupling between VDD
and GND. Operating only one output.
40
ps
* Note: Jitter performance depends on the programming parameters.
PL611-25
Programmable Quick Turn Clock
T M
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
Rev 10/05/05 Page 4
DC SPECIFICATIONS
PARAMETERS SYMBOL
CONDITIONS
MIN.
TYP.
MAX.
UNITS
Supply Current, Dynamic,
with Loaded Outputs
I
DD
At 10MHz, load=15pF
15
mA
Operating Voltage
V
DD
2.25 3.63 V
Output Low Voltage
V
OL
I
OL
= +4mA (Standard drive)
0.4
V
Output High Voltage
V
OH
I
OH
= -4mA (Standard drive)
V
DD
0.4
V
I
OSD
V
OL
= 0.4V, V
OH
= 2.4V (Standard
drive)
10 mA
Output Current
I
OHD
V
OL
= 0.4V, V
OH
= 2.4V (High Drive)
24 mA
Short-circuit Current
I
S
50
mA
CRYSTAL SPECIFICATIONS
PARAMETERS SYMBOL
MIN.
TYP.
MAX.
UNITS
Fundamental Crystal Resonator Frequency
F
XIN
10 30
MHz
3
rd
Overtone Crystal Resonator Frequency
F
XIN
75
MHz
Crystal Loading Rating
(The IC can be programmed for any value in this range.)
C
L (xtal)
5 20 pF
Maximum Sustainable Drive Level
500
W
Operating Drive Level
100
W
Crystal Shunt Capacitance
C0
6
pF
Effective Series Resistance, Fundamental, 10-30MHz
R
S
30
Effective Series Resistance, 3
rd
Overtone, 30-50MHz
[CO< 4pF, C
L
=5pF/8pF]
ESR
100/70
Effective Series Resistance, 3
rd
Overtone, 50-65MHz,
[CO< 4pF, C
L
=5pF/8pF]
ESR
60/40
Effective Series Resistance, 3
rd
Overtone, 65-75MHz
[CO< 4pF, C
L
=5pF/8pF
ESR
45/30
Note: A detailed crystal specification document is also available for this part
PL611-25
Programmable Quick Turn Clock
T M
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
Rev 10/05/05 Page 5
ORDERING INFORMATION

PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information
furnished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said
information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY: PhaseLink's products are not authorized for use as critical components in life support devices or systems without the
express written approval of the President of PhaseLink Corporation.
For part ordering, please contact our Sales Department:
47745 Fremont Blvd., Fremont, CA 94538, USA
Tel: (510) 492-0990 Fax: (510) 492-0991
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PL611-25 WX




Part / Order Number
Marking
TEMPERATURE
PL611-25WC P611-25WC
0- +70 C
PART NUMBER
TEMPERATURE
C=COMMERCIAL
I = INDUSTRIAL
PACKAGE TYPE
W= WAFER
