EUROLINE - DC/DC-Converter
RxxL and RxxM Series, 0.25 Watt, DIP8/SIP4, 1kVDC Isolation (Single Output)
Selection Guide
3.3V, 5V and 12V input types
Typical Isolation Capitance (pF)
Absolute Maximum Ratings Over Operating Free Air Temperature Range
High Efficiency for Low Power
Applications
Pin Compatible with Industrie
Standard
Single Output Rail
UL 94V-O Package Material
No Heatsink Required
Toroidal Magnetics
Fully Encapsulated
No External Components Required
Custom Solutions Available
Features
Part Number
Output
Output
Package
Voltage
Current
Style
(V)
(mA)
RxxL03
3.3
76
RxxL05
5
50
RxxL09
9
28
DIP8
RxxL12
12
21
RxxL15
15
16
RxxM03
3.3
76
RxxM05
5
50
RxxM09
9
28
SIP4
RxxM12
12
21
RxxM15
15
16
Part Number
Output Voltage (V)
03V
05V
09V
12V
15V
R03L/Mxx
25
70
38
38
R05L/Mxx
25
29
37
41
40
R12L/Mxx
38
40
43
45
Input Voltage V
IN
3V types
5V
Input Voltage V
IN
5V types
7V
Input Voltage V
IN
12V types
15V
Output Power Total
250mW
Short Circuit Duration
1s
Isolation Voltage (flash tested for 1 second)
1000VDC
Operating Free Air Temperature Range (requires a minimum of 10 mm air space around the component)
40°C to 70°C (see derating Curve)
Storage Temperature Range
55°C to 150°C
Lead Temperature (1.5 mm from case for 10 seconds)
300 °C
www.recom-international.com
EU 3

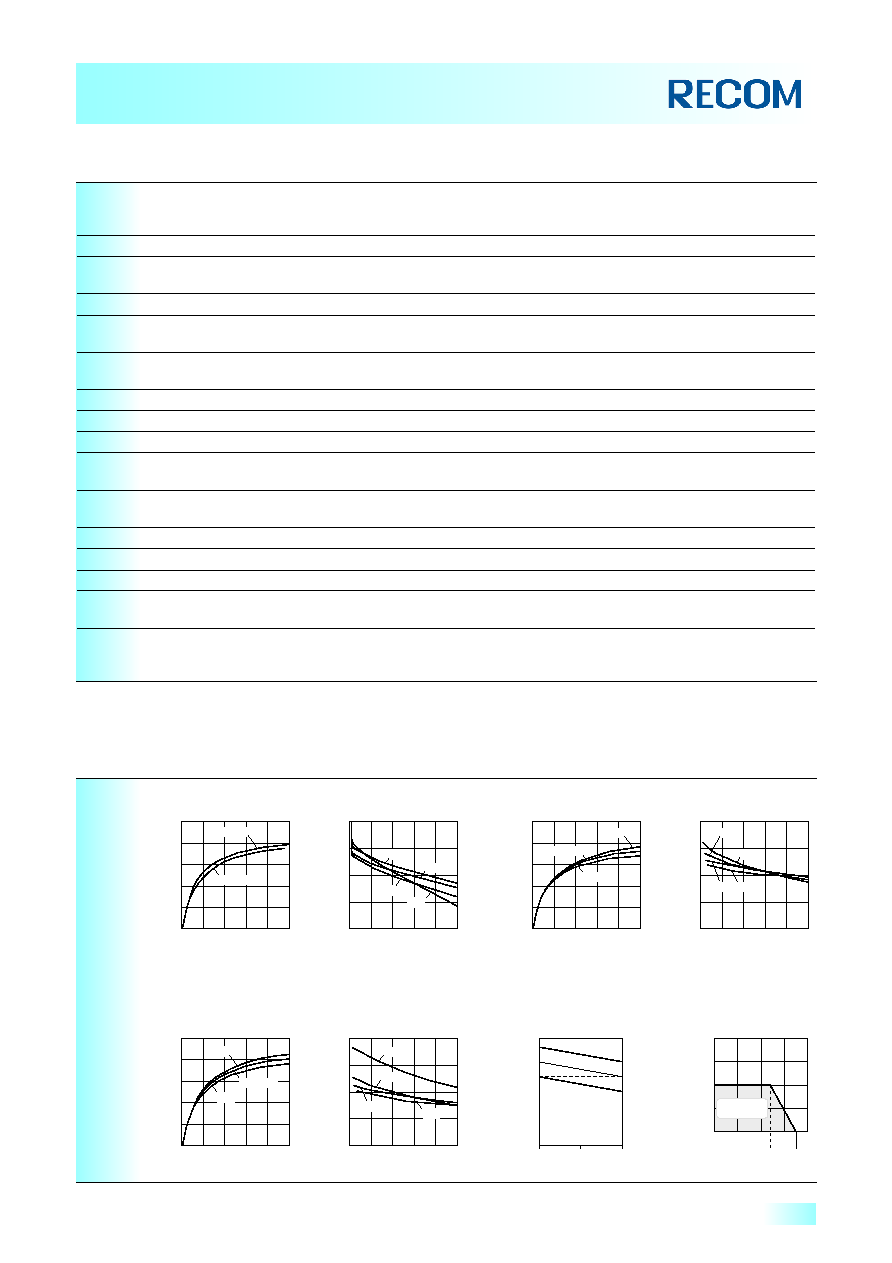

Electrical Specifications
(measured at T
A
= 25°C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range V
IN
(continuous operation)
3V types
3.3VDC ±10%
5V types
5VDC ±10%
12V types
12VDC ±10%
Output Voltage Accuracy (depending on the type)
see Tolerance Envelope Graph
Load Voltage Regulation (10% load to 100% full load)
3.3V and 5V output types
15% max.
9V, 12V and 15V output types
10% max.
Line Voltage Regulation (10% load to 100% full load)
1.2% / 1.0% of V
IN
Input Reflected Ripple (20MHz band limited)
3V types
50mVp-p max.
5V and 12V types
40mVp-p max.
Output Ripple (20MHz band limited)
3V types
75mVp-p max.
5V and 12V types
100mVp-p max.
Isolation Voltage (flash tested for 1 second)
1000VDC
Insulation Resistance at 500VDC
1000M min.
Switching Frequency at Full Load (typical)
100kHz max.
Package Weight
SIP types
1.4 g
DIP types
1.5 g
Efficiency (at full load)
3.3V and 5V output types
70% typ. / 60% min.
9V, 12V and 15V output types
75% typ. / 70% min.
Operating Free Air Temperature Range (requires a minimum of 10 mm air space around the component)
0°C to 70°C (see derating Curve)
Temperature Drift (V
OUT
)
0.03% per °C max.
Temperature Rise above Ambient (at full load)
10°C max.
No Load Power Consumption (typical)
3V types
50mW typ.
5V and 12V types
30mW typ.
MTTF
1)
(depending on the type)
25°C
273kHrs min. / 3293kHrs max.
+25°C
237kHrs min. / 2767kHrs max.
+75°C
208kHrs min. / 2319kHrs max.
1).
Calculated using MIL-HDBK-217F with nominal input voltage at full load.
Please contact us, if you need exact parameters for the converter you have selected.
EUROLINE - DC/DC-Converter
RxxL and RxxM Series, 0.25 Watt, DIP8/SIP4, 1kVDC Isolation (Single Output)
Typical Characteristics, Tolerance Envelope and Temperature Derating Graph
Total Output Current (%)
40
60
80
20
-5
0
+5
+10
0
100
-10
Deviation from Nominal (%)
0312
0315
0309
0305
Total Output Current (%)
Efficiency (%)
40
60
80
20
40
60
80
100
0
100
20
1215
1209, 1212
1205
R12L/Mxx
Total Output Current (%)
40
60
80
20
-5
0
+5
+10
0
100
-10
Deviation from Nominal (%)
1212
1205
1215
1209
Tolerance Envelope
Total Output Current (%)
Efficiency (%)
40
60
80
20
40
60
80
100
0
100
20
0505
0509, 0512
0515
R05L/Mxx
R03L/Mxx
Efficiency (%)
Total Output Current (%)
40
60
80
20
40
60
80
100
0
100
20
0309, 0312
0305, 0315
Total Output Current (%)
40
60
80
20
-5
0
+5
+10
0
100
-10
Deviation from Nominal (%)
0512
0515
0509
0505
+10%
+5%
V Nom.
+2,5%
2,5%
10%
50%
100%
Output V
o
ltage
Output Load Current (%)
7,5%
Typical Load L
ine
Temper. Derating Graph
Ambient Temperature °C
Output Power (W
atts)
0.125
100
50
0
-40
70
125
150
0
0.500
0.375
0.250
Safe
Operating Area
EU 4
www.recom-international.com
0V
GND
+V
VIN
3
1 2
4
2.54
2.54
1.00ø+0.15/0
6.00
11.50
RxxMxx
RECOM
****
0.50±0.05
4.1 min.
0.50±0.05
10.00
1.25 typ.
0.25±0.05
7.62
1.9
4.1 min.
0.50±0.05
7.80
5.08
10.10
12.60
RxxLxx
RECOM
****
0.25±0.05
7.62
1.25 typ.
1.9
7.62
2.54
2.54
1.00ø+0.15/0
(Top View)
4
Vin
1
GND
0V
7
+V
5
8 Pin DIP Package Style
4Pin SIP Package Style
Recommended Footprint Details
XX.X ± 0.5 mm
XX.XX ± 0.25 mm

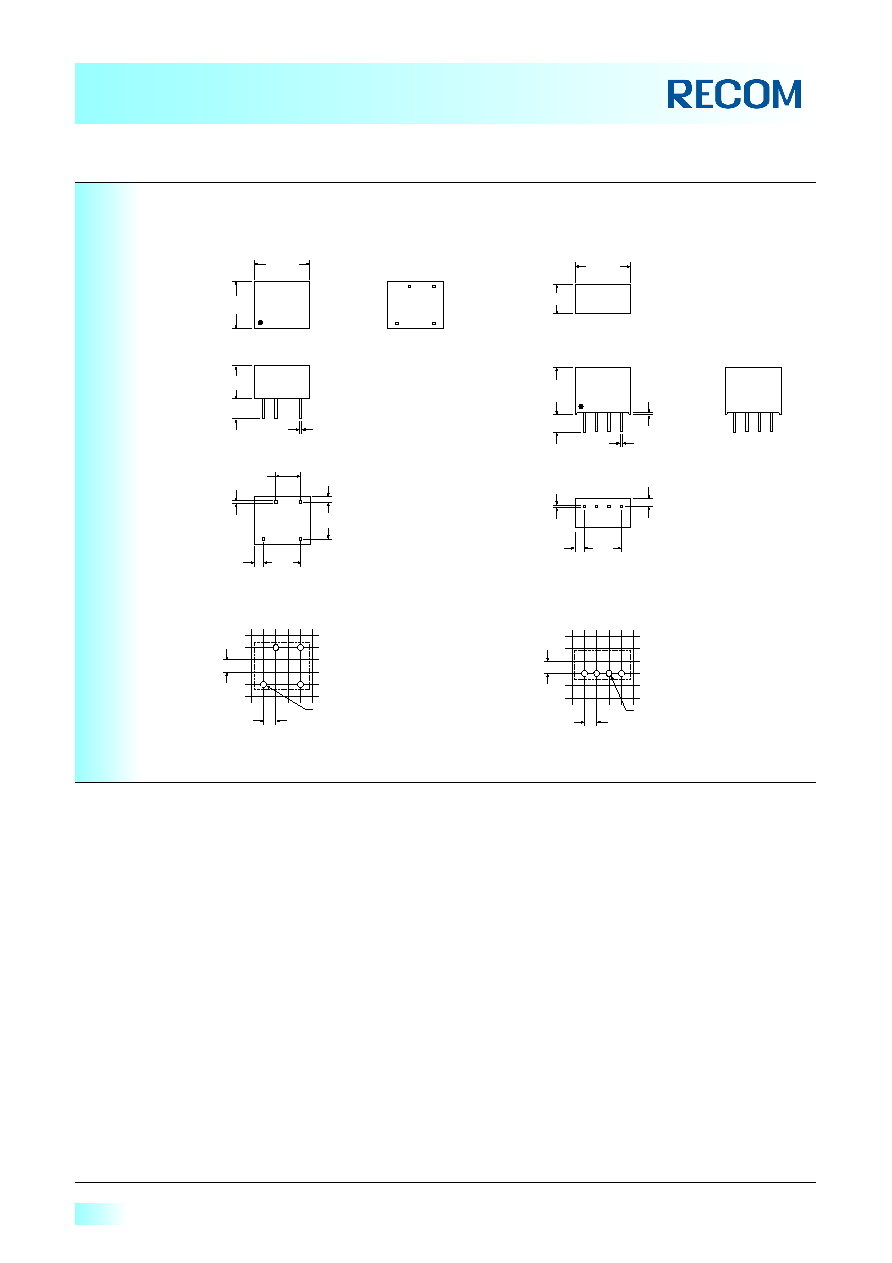

Package Style and Pinning (mm)
EUROLINE - DC/DC-Converter
RxxL and RxxM Series, 0.25 Watt, DIP8/SIP4, 1kVDC Isolation (Single Output)
